3D Printed Parts – Australia
LC200 ARB Wing Plate Panel – Anderson Plug & Dual Cig Socket Mount
Vehicle Fitment
This was made for Toyota LandCruiser 200 Series
ARB Drawer System

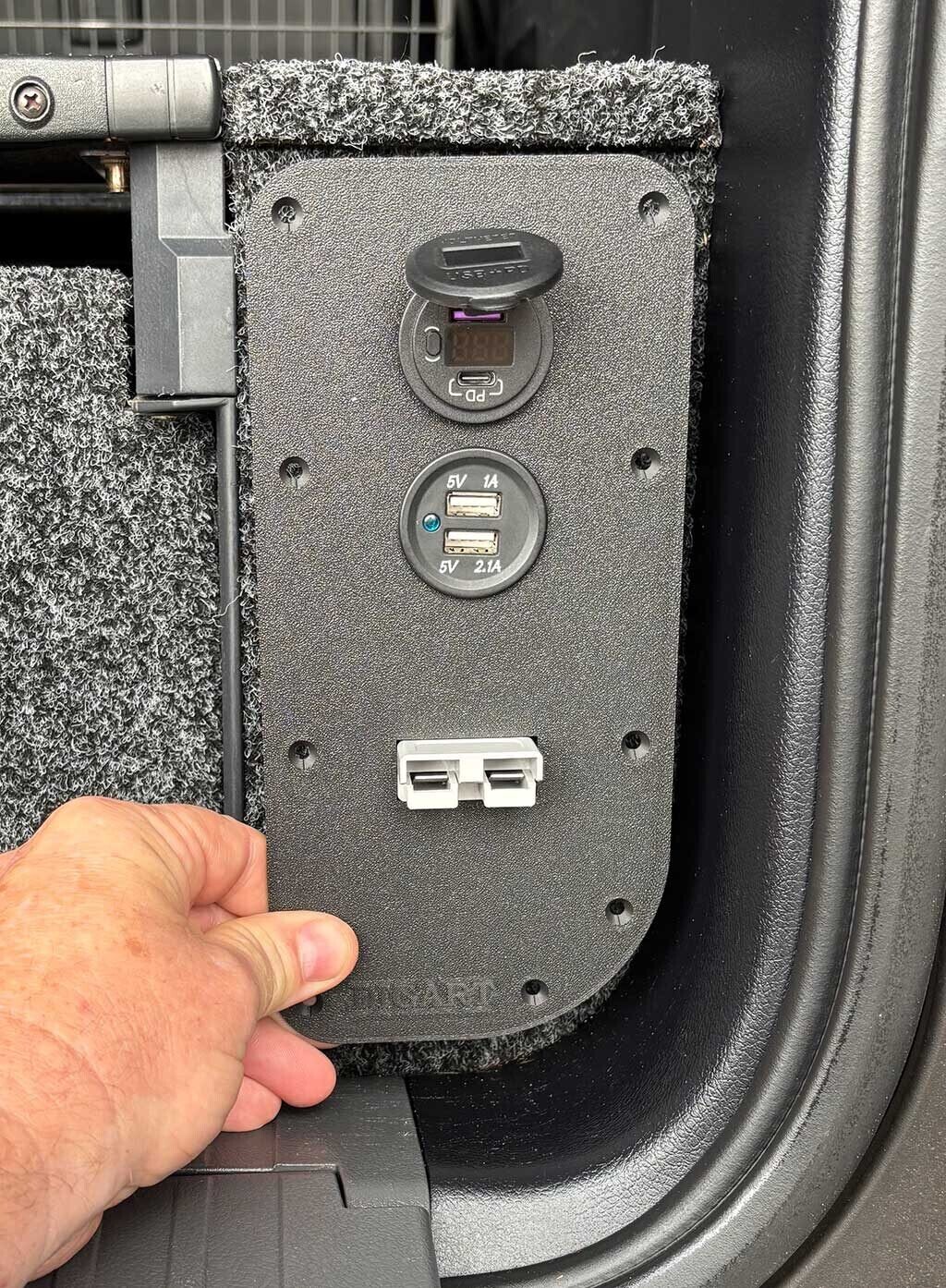

Mounting Location
RIGHT Side (Driver Side – Australia)
Drawer Wing Panel
Key Features

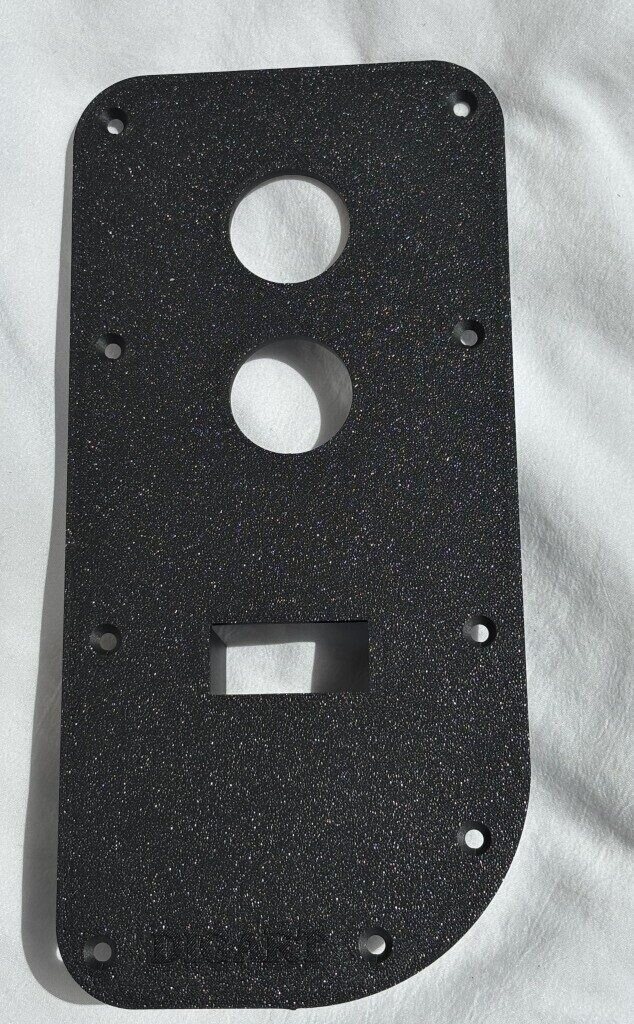

✔ Designed to suit ARB Drawer Wing Panel systems
✔ Right-hand side (Driver side – Australia)
✔ Anderson Plug Mount (36 × 16 mm cut-out)
✔ Dual Cigarette Socket Holes (Ø29 mm)
✔ Countersunk mounting holes for flush installation
✔ Reinforced Anderson retention pocket
✔ Rear U-channel structural support
✔ Strong 3 mm thick panel
✔ Designed and manufactured in Australia

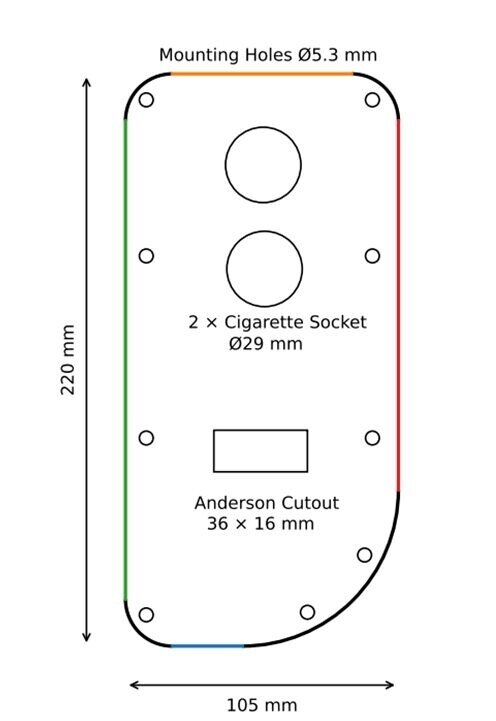

Technical Specifications
Panel Dimensions
Overall Width: 105 mm
Overall Height: 220 mm
Panel Thickness: 3 mm
Mounting Holes
Bolt Hole Diameter: Ø5.3 mm
Countersink: .Ø11 mm – 90°

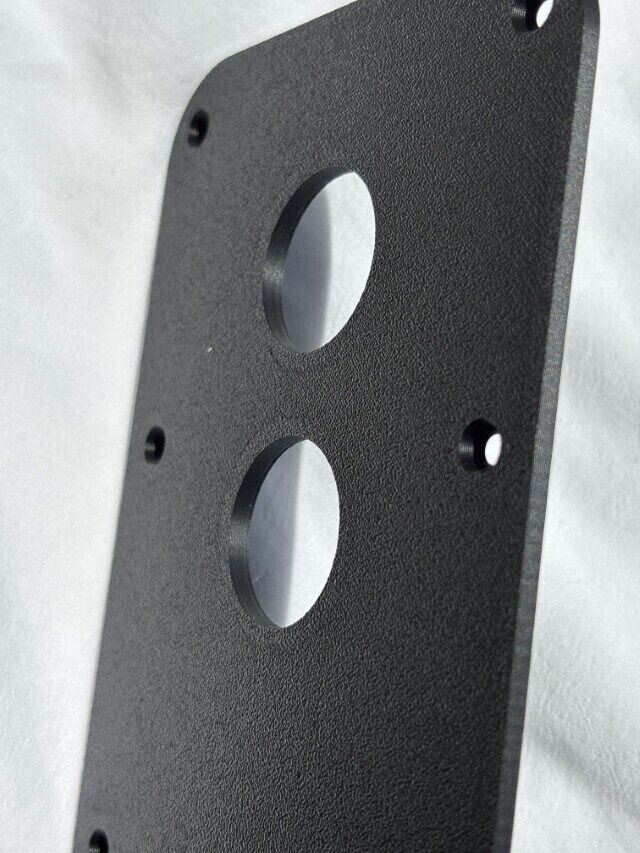

Cigarette Socket Holes
Quantity: 2
Hole Diameter: Ø29 mm
Anderson Plug Opening
Opening Size: 36 × 16 mm

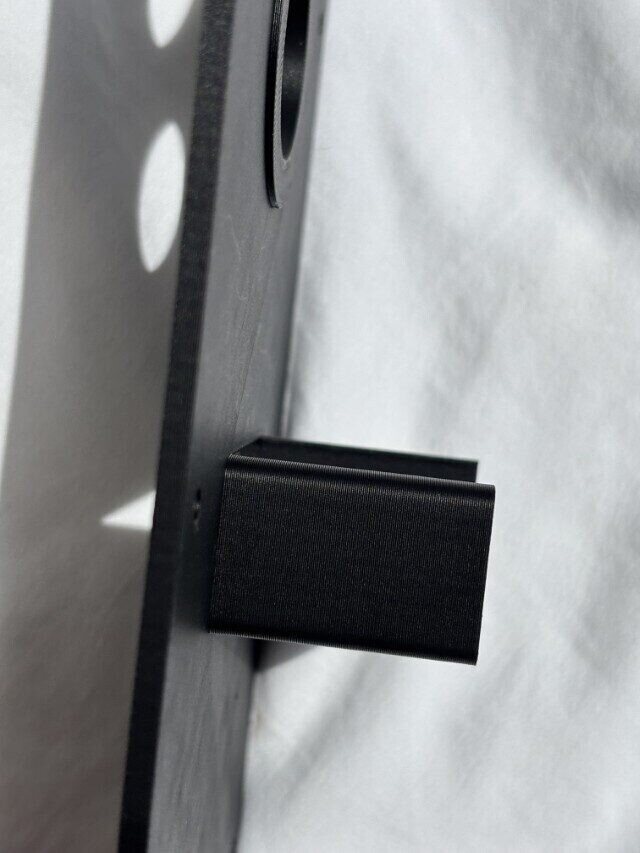

Rear Reinforced Retention Pocket: 26 mm depth
Rear Reinforcement
Integrated U-Channel support structure for increased rigidity and load strength.
Colour
• Black
Package Includes
• 1 × LC200 ARB Drawer Wing Plate – Driver Side
Important Information
• Mounting screws NOT included
• Cigarette lighter sockets NOT included
• Anderson plug NOT included
This listing is for the wing mounting panel only.

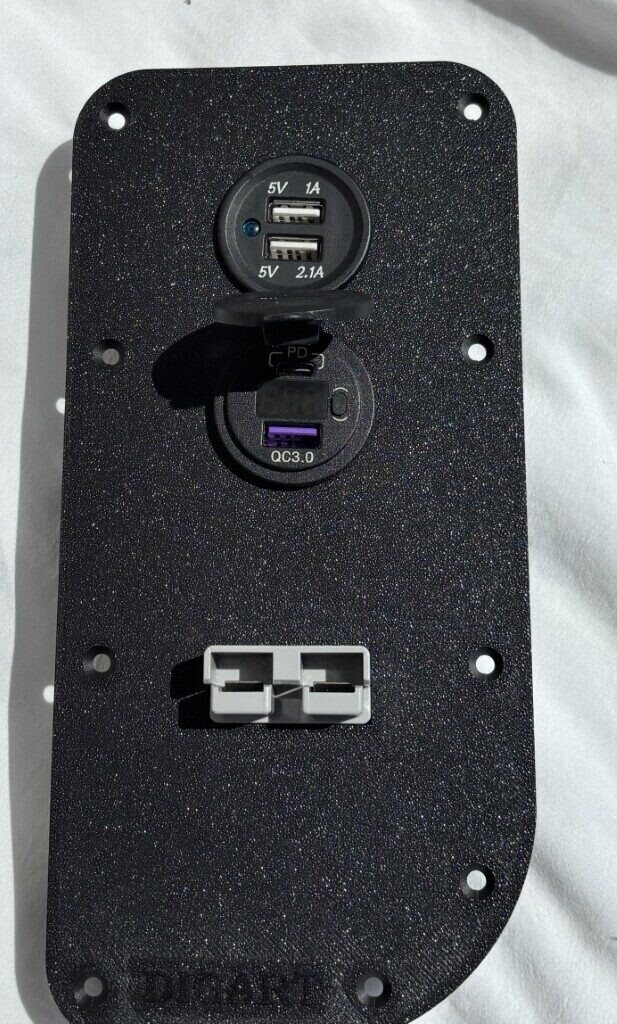

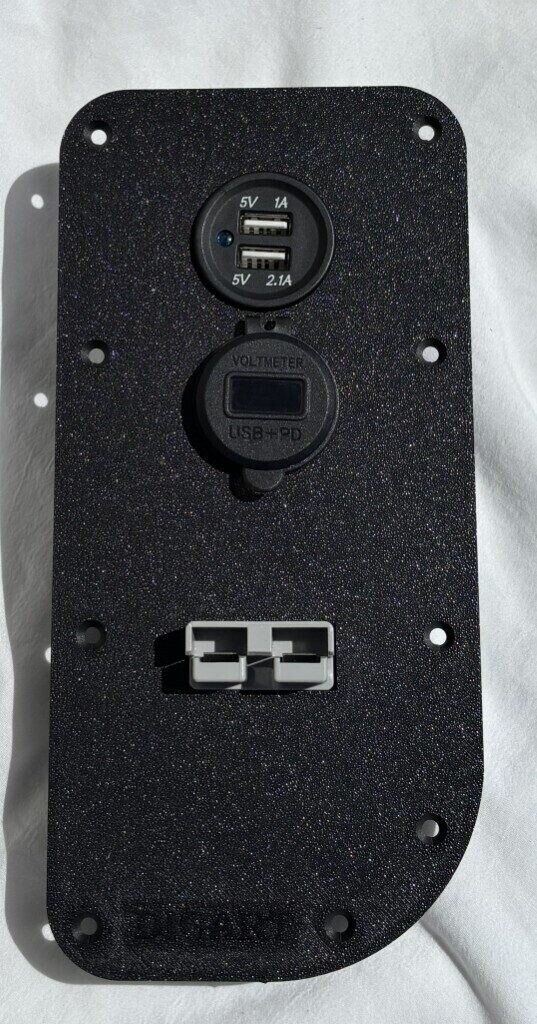

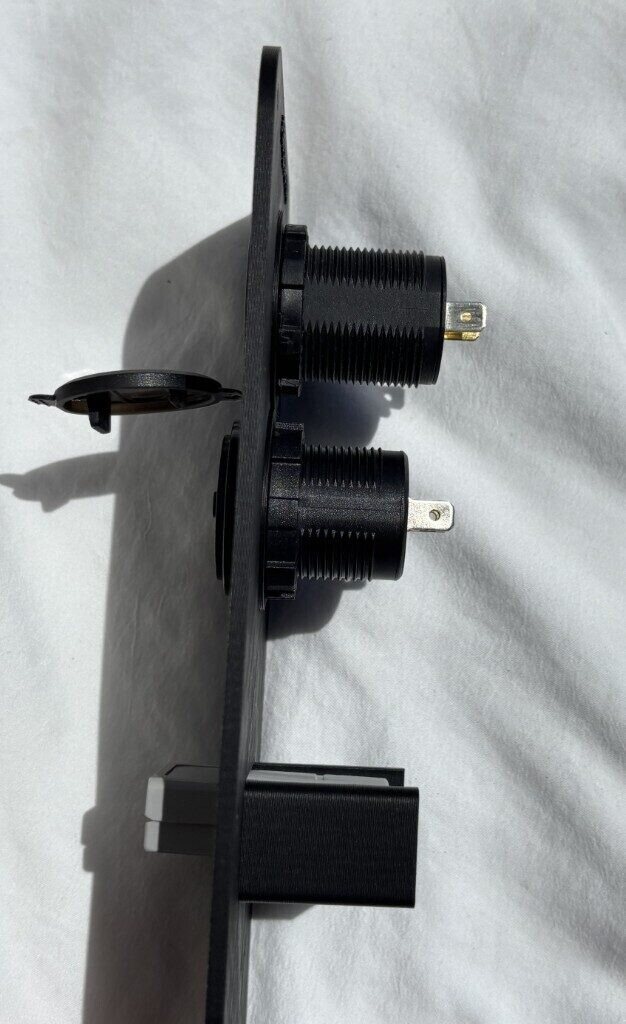

Electrical accessories shown in photos are for illustration purposes only.
Material
Manufactured from strong and rigid engineering plastic designed for durability in automotive environments.
The material provides excellent dimensional stability across a wide temperature range, helping prevent warping. Its high rigidity and strength resist deformation under both tensile and compressive loads, ensuring long-lasting performance.
If you have any questions or require further information, please feel free to contact us.
We are always happy to help.
